Sinotruk Tipper Dump Truck NX 6 × 4 10 Wheels Weichai 380Hp Big Tray
Description:
Sinotruk howo dump truck quality are durable which have been proved by the market and time. That’s why more and more customers prefer to buy Sinotruk howo dump trucks to support their business. And sinotruk howo dump truck has the competitive price with China other brand heavy duty trucks.
Sinotruk HOWO 6X4 Dump Truck, which used for transporting the stuff in bulk which can be scattered (such as sand, pebbles, soil, minerals, etc.). It can be loading 20-35 tons. The truck model mainly in construction sites, Mining area and so on.
Specifications:
| Sinotruk Tipper Dump Truck NX 6 × 4 10 Wheels Weichai 380Hp Big Tray |
| Model | ZZ3257N384JB1R |
| Drive Type | 6×4 |
| Engine | | WP10.380E22,380HP ( Euro II) | | 6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine | | Displacement : 9.726L | |

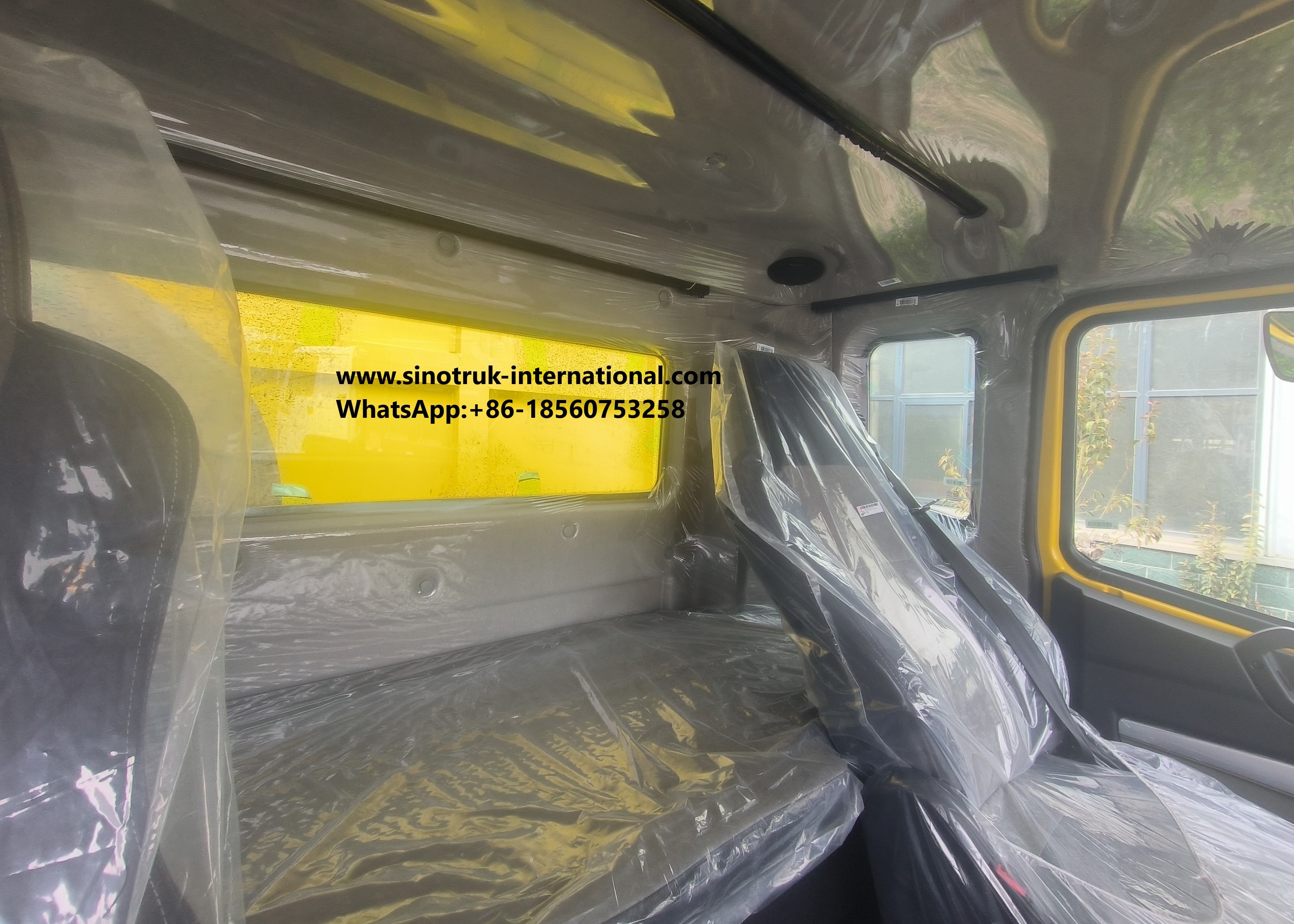

| Cabin | H77L (with one sleeper, air-conditioner and new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | 1×VGD95 ( 9.5 Tons) |
| Driving Axle | 2XMCP16ZG, 16Tons |
| Steering | BOSCH |
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
| Rim/ Tire | 12.00R20 Radial tire |
| Wheel base | 3825+1350(mm) |
| Overall dimension | 8545×2600×3450(mm) |
| Cargo body | 5600×2300×1500(mm),Bottom:8mm, Side:6mm |
| The curb weight | 12250(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 75km/h |
| Color | White, red, green, golden and so on. |
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1) with all kinds of truck model, which can fulfil your requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make the trucks with high quality and more reliable
4) Optimized cargo body structure,light weight,high rigidity,large loading capacity
5) Using the high strength steel,it has long service life
6) Optimized the sealing structure has the better sealing effect.
7) The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.
8) Multiple box structures and device selections
9) low fuel consumption
10) strong enough engine
11) competive price, cost-effective
12) quick and efficient spare parts supply bring you more convenient
13) fast delivery time, we can arange production according to your needs exactly and quickly
14) professional import and export dealing precedure, make customs clearance more high efficiency
